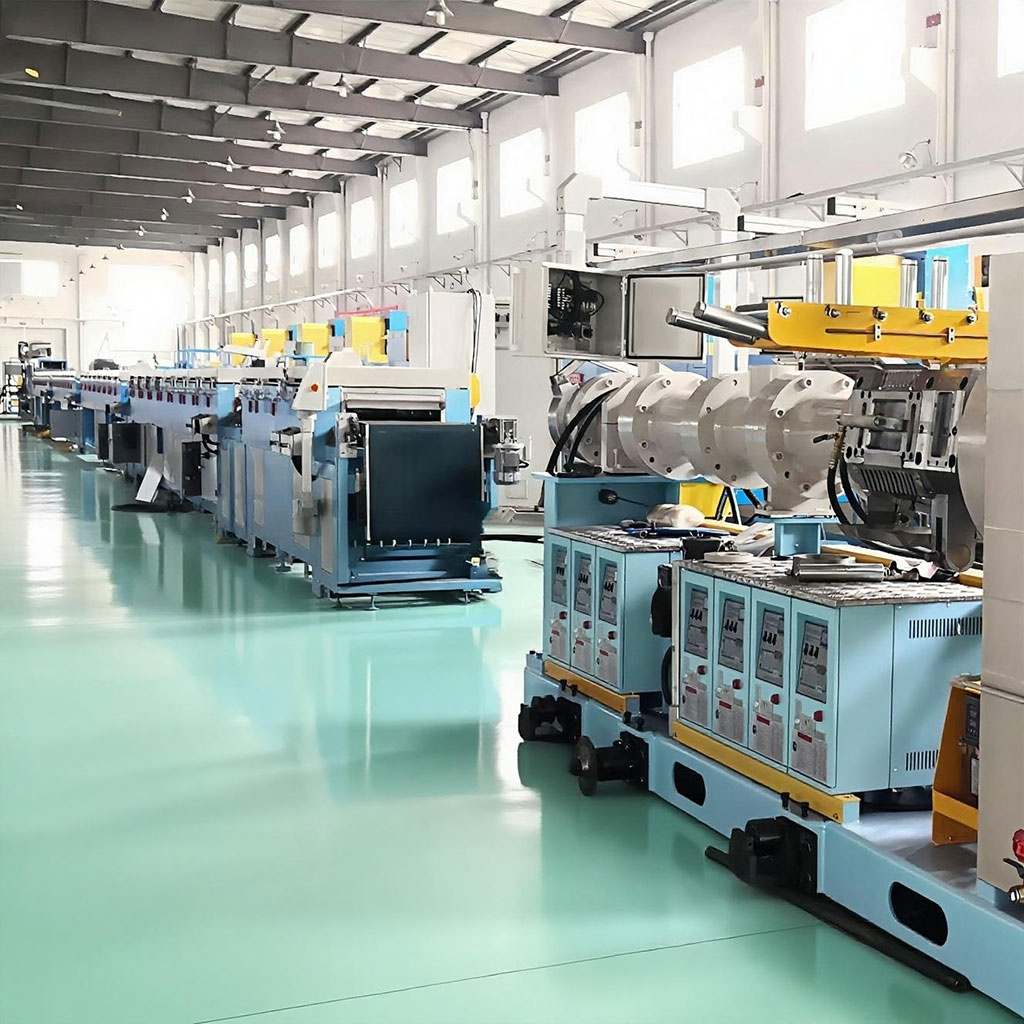

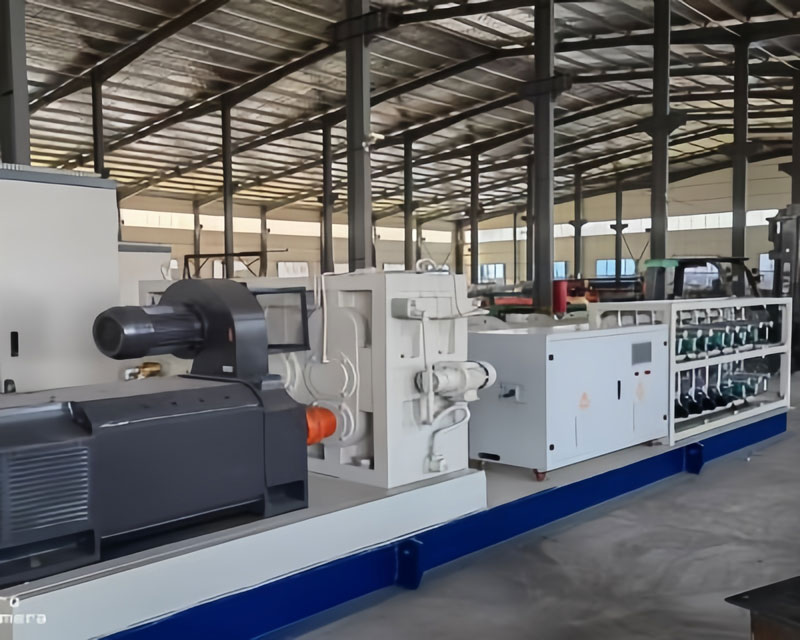

Rubber Vented Extruder
I. Product Description
A rubber vented extruder is an advanced equipment specifically used for producing various foamed or non-foamed rubber products, mainly for manufacturing rubber pipes, sheets, handles, sleeves, profiles, sealing strips, etc.
Core Features: The vented extruder is equipped with a special vent port in the middle of the barrel, which can effectively remove air and volatiles from the processed material, ensuring product quality and stable performance.
Main Components:
Motor System: Provides stable power output
Reducer: Adjusts speed and torque
Feeding Device: Ensures uniform material supply
Barrel and Screw: Core extrusion components
Die Head and Mold: Key components for product shaping
Temperature Control Device: Precisely controls processing temperature
Vacuum Pump System: Achieves efficient venting function
Electrical Control System: Fully automated control
Frame Structure: Stable equipment support
Screw Structure Features:
The vented extruder screw adopts a five-stage design:
Feeding Section: Initial material conveying and preheating
Compression Section: Material compaction and initial plasticization
Throttling Section: Uses shallow, constant pitch, constant depth threads to provide high shear force and stable conveying
Venting Section: Area for volatile and air removal
Extrusion Section: Final plasticization and shaping extrusion
II. Equipment Advantages (Core Selling Points)
Provides Turnkey Service: Equipment + Specialized Formulation + Process Technology + After-sales Support
Efficient Venting Design: Unique venting system design effectively removes air and volatiles from raw materials, improving product density and quality stability.
Precise Temperature Control System: Multi-zone independent temperature control, PID intelligent adjustment, ensures accurate and stable processing temperature, improving product consistency.
Advanced Screw Design: Five-stage screw structure, throttling section uses shallow, constant pitch, constant depth threads, providing high shear and stable conveying process.
Energy Saving and Environmental Protection: Optimized energy consumption design, 15-20% more energy-efficient than traditional equipment, meets green manufacturing requirements.
Easy Operation: User-friendly touchscreen interface, intuitive parameter settings, simple and quick operator training.
Convenient Maintenance: Modular design, key components easy to disassemble and replace, reducing downtime and improving equipment utilization.
III. Technical Parameter Table
| Parameter Name | Parameter Value | Unit | Remarks |
| Model | XJ-PQ65 | - | Standard Vented Model |
| Screw Diameter | 65 | mm | Customizable as required |
| L/D Ratio | 20:01 | - | Optimized plasticization and venting effect |
| Production Capacity | 80-150 | kg/h | Depending on material and product |
| Main Motor Power | 37 | kW | Frequency control, energy efficient |
| Heating Power | 18 | kW | Zone control, precise temperature control |
| Heating Zones | 6 | zones | Barrel 5 zones + Die head 1 zone |
| Temperature Control Accuracy | ±1 | ℃ | PID intelligent control |
| Vacuum Pump Power | 4 | kW | Efficient venting system |
| Vacuum Degree | ≥0.092 | MPa | Ensures sufficient venting |
| Cooling Method | Air/Water Cooling | - | Optional configuration |
| Overall Dimensions | 4800×1300×1900 | mm | L×W×H |
| Equipment Weight | Approx. 3800 | kg | Net weight |
IV. Formulation Table
| Raw Material Name | Ratio(%) | Function | Remarks |
| Natural Rubber | 40-60 | Matrix Material | Adjustable based on product requirements |
| Synthetic Rubber | 20-40 | Matrix Material | SBR, BR, etc. |
| Carbon Black | 25-50 | Reinforcing Agent | Improves strength and wear resistance |
| Plasticizer | 5-15 | Softener | Improves processing performance |
| Vulcanizing Agent | 1-3 | Crosslinking Agent | Sulfur or other vulcanization systems |
| Accelerator | 0.5-2 | Accelerates Vulcanization | Multiple accelerators compound |
| Antioxidant | 1-3 | Anti-aging | Improves service life |
| Foaming Agent | 1-5 | Foaming Function | For foamed rubber products |
| Filler | 10-30 | Cost Reduction/Performance Improvement | Calcium carbonate, talc, etc. |
| Other Additives | 1-5 | Special Function | Colorants, flame retardants, etc. |
Note: The above is a general formulation reference; specific formulations need to be customized according to customer product requirements. Vented extruders are particularly suitable for processing formulations with high volatile content.
V. Equipment List
| No. | Equipment Name | Specification Model | Qty. | Remarks |
| 1 | Main Unit | XJ-PQ65 | 1 unit | Incl. motor, reducer |
| 2 | Control System | PLC-3000 | 1 set | Siemens PLC, touchscreen operation |
| 3 | Heating System | JH-6 | 1 set | 6-zone heating, ceramic heaters |
| 4 | Vacuum Venting System | ZK-4 | 1 set | Incl. vacuum pump, venting device |
| 5 | Cooling System | LQ-65P | 1 set | Air/Water cooling optional |
| 6 | Feeding Device | WL-2 | 1 set | Forced feeding, with hopper |
| 7 | Die Head and Mold | Customized | 1 set | Customized per product requirements |
| 8 | Cutting System | QG-200 | 1 set | Automatic length cutting |
| 9 | Auxiliary System | FJ-2 | 1 set | Haul-off, winding, etc. |
| 10 | Tools & Spare Parts | Standard Package | 1 set | Installation tools & wear parts |
VI. Process Flow Chart
1 Raw Material Preparation:Batching, Mixing → Compound Preparation
2 Feeding System:Compound Input → Forced Feeding
3 Heating & Plasticization:Preheating → Initial Plasticization
4 Compression & Conveying:Material Compaction → Stable Conveying
5 Throttling & Shearing:High Shear Treatment → Uniform Mixing
6 Vacuum Venting:Volatile Removal → Density Improvement
7 Final Extrusion:Final Plasticization → Mold Shaping
8 Cooling & Setting:Water/Air Cooling → Product Setting
9 Haul-off & Cutting:Constant Speed Haul-off → Length Cutting
10 Collection & Packaging:Inspection → Packaging & Storage
Process Description: The entire production process is uniformly monitored by the central control system. The venting system effectively removes air and volatiles from the raw materials during processing, ensuring stable and reliable product quality.
VII. Application Fields
Rubber Pipes,Rubber Sheets,Rubber Handles,Rubber Sleeves,Rubber Profiles,Sealing Strips
Foamed Rubber Products,Automotive Rubber Parts,Building Sealing Materials,Electronic Insulation Materials
Main Industry Applications:
Rubber Products Industry: Various rubber tubes, rubber belts, rubber sheets, seals, etc.
Automotive Manufacturing: Automotive sealing strips, hoses, shock absorbers, tire components, etc.
Construction Industry: Building sealing strips, waterproofing materials, sound insulation materials, etc.
Electronics Industry: Wire and cable insulation, electronic component seals, etc.
Home Appliance Industry: Appliance sealing strips, shock absorption pads, etc.
Sports Goods: Sports equipment rubber parts, fitness equipment accessories, etc.
