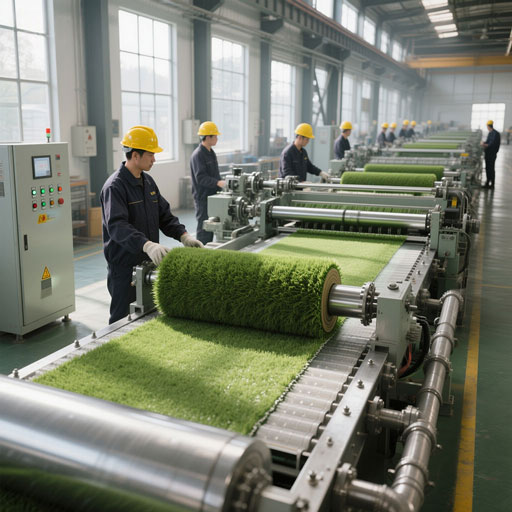

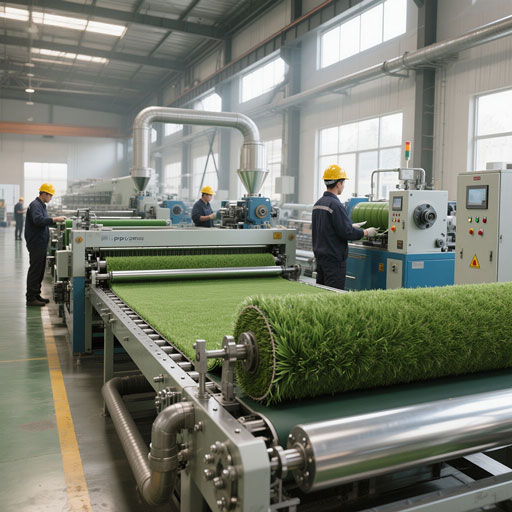

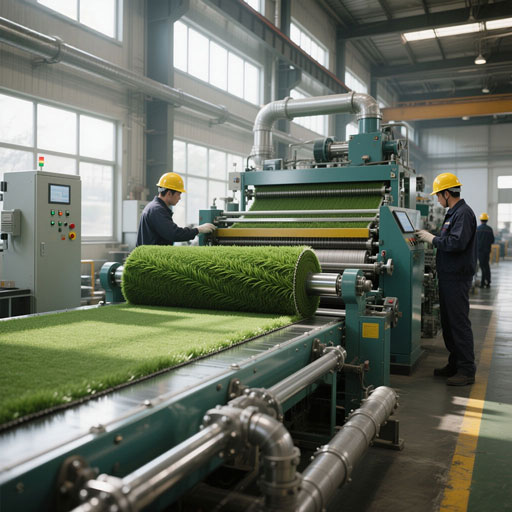

Artificial Turf Production Line
I. Product Description
The artificial turf production line is a specialized system for manufacturing high-simulation, durable, low-maintenance synthetic turf for sports fields, landscaping, and recreational areas. It transforms PP (polypropylene) and PE (polyethylene) plastic raw materials into monofilament grass fibers through core processes like filament extrusion, tufting (or needling), backing application, drying, and winding. The final product features realistic blade morphology, vibrant color, good elasticity, UV resistance, and wear resistance, making it essential for modern sports and landscape construction.
II. Equipment Advantages (Core Selling Points)
We provide a true "turnkey" solution covering equipment, formulations, process technology, and after-sales support for worry-free production startup:
Complete Equipment: Includes full-process machinery for filament extrusion, tufting/needling, backing, drying, and winding.
Dedicated Formulations: Optimized formulas for PP/PE filaments and eco-friendly backing ensure strength, weather resistance, and environmental compliance.
Mature Process: 10+ years of artificial turf production experience for precise control over filament density, length, and overall performance.
Turnkey Service: Equipment + Formulations + Process Technology + After-sales Support, one-stop implementation.
OEM Customization Support: Customize branding, packaging, and specifications per client requirements.
Permanent Online Technical Support: Remote video guidance, process optimization, and issue response.
III. Technical Parameters Table
| Item | Parameter |
| Applicable Raw Materials | PP (Polypropylene), PE (Polyethylene), etc. |

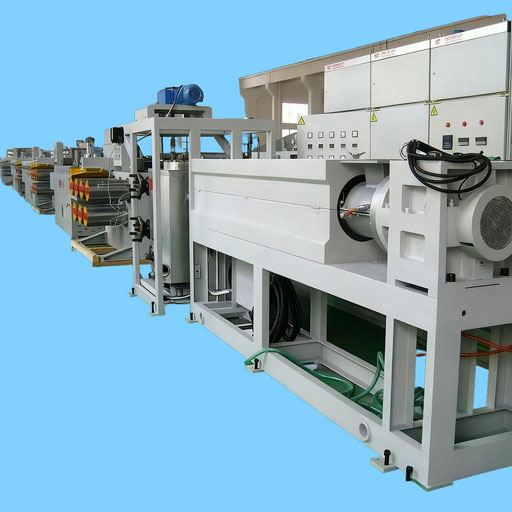

| Filament Extruder | Single/Twin-screw Extruder (High Precision) |
| Screw Diameter | Φ40~Φ75 mm |
| Filament Type | Straight Filament, Curled Filament, Monofilament/Multifilament |
| Filament Diameter | 0.1~0.4 mm (100~400 microns) |
| Pile Height | 10~70 mm (Customizable) |
| Density | 8000~25000 Stitches/㎡ (Adjustable) |
| Control System | PLC + Temperature Control + Speed Control |
| Drying Method | Hot Air Drying / Infrared Drying |
| Winding Method | Automatic Winding, Coiling or Spooling |
IV. Formulation Table (Example: PP-based Artificial Turf Filament)
| Component | Proportion (%) | Function |
| PP (Polypropylene) | 85~95% | Base material, determines filament strength, weather resistance, processability |
| Color Masterbatch | 1~3% | Provides color, customizable (e.g., Emerald Green, Dark Green) |
| UV Stabilizer | 0.3~1% | Enhances UV resistance, extends service life |
| Lubricant | 0.2~1% | Improves processability, prevents melt adhesion |
| Anti-aging Agent (Optional) | 0.3~1% | Enhances weather and aging resistance |
V. Equipment List (Typical Configuration)
| No. | Equipment/System | Function |
| 1 | Filament Extruder | Melts and plasticizes PP/PE raw material, extrudes filaments |
| 2 | Tufting Machine/Needling Machine | Implants filaments into backing fabric to form grass blade structure |
| 3 | Backing System | Applies eco-friendly backing adhesive to fix filaments and backing |
| 4 | Drying System | Cures adhesive, stabilizes final product structure |
| 5 | Winding Machine | Winds finished artificial turf |
| 6 | Electrical Control System | Precise control of temperature, speed, tension, etc. |
VI. Process Flow Chart
[Raw Material Mixing] → [Filament Extrusion] → [Tufting/Needling] → [Backing Application]→[Drying/Curing] → [Winding] → [Post-processing/Packaging/Installation]
VII. Application Fields
Soccer fields, tennis courts, basketball courts, etc. (synthetic sports turf)
Landscaping, rooftop gardens, balcony turf
Kindergartens, parks, recreational pathways (synthetic grass)
Export markets (regions with high quality/environmental standards: Europe, Americas, Middle East, Japan, South Korea)
VIII. About APEX
Headquarters: Shandong, China
Established: 2014 (10+ years specializing in plastic extrusion & artificial turf equipment)
Market Distribution: Domestic: 35%, North America: 9%, South Asia/South America/Eastern Europe/Middle East: 7%~5% each
Enterprise Scale: 3 branch factories, 2 major industrial parks, 100+ employees
Service Principle: Quality First, Turnkey Projects, Full-process Technical Support, OEM Customization Support, Permanent Online Video Technical Support
