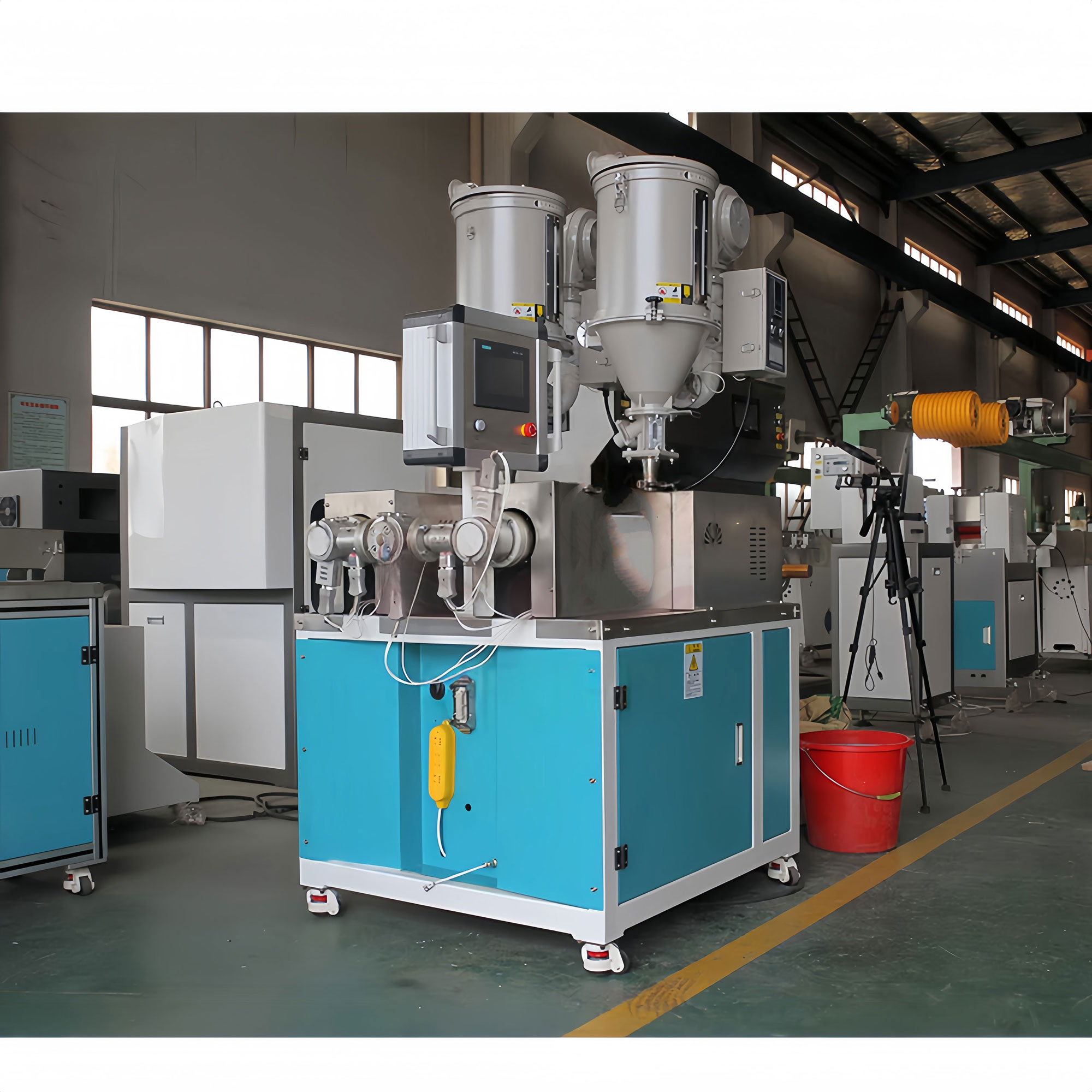

Plastic Paint Brush Filament Extrusion Production Line
I. Product Description
The plastic paint brush filament extrusion production line is a professional plastic extrusion system specially designed for producing high-quality plastic paint brush filaments (used for coating brushes, paint brushes, etc.). This production line uses precision molds and temperature control to melt and plasticize plastic raw materials such as PP, PE, PET, PA, etc., then uniformly extrudes them through a multi-hole T-die, and through processes such as cooling, drawing, and winding, produces high-strength, high-toughness, smooth-surfaced, solvent-resistant, and easy-to-clean plastic monofilaments, which are the core raw material production lines for professional brush manufacturing like paint brushes and coating brushes.
II. Equipment Advantages (Core Selling Points)
We provide a true "turnkey" overall solution, covering equipment, formulations, processes, and after-sales support, allowing you to start production worry-free:
Complete Equipment: Includes raw material handling, extruder, die head, cooling system, drawing, winding, etc.
Specialized Formulations: Provide optimized formulations for PP/PE/PET/PA, etc., ensuring filament strength, solvent resistance, and surface smoothness
Mature Process: 10+ years of paint brush filament production experience, precise control of filament diameter and physical properties
Turnkey Service: Equipment + Formulations + Process Technology + After-sales Support, one-stop implementation
Support OEM Customization: Can customize brand, packaging, and specifications according to customer needs
Permanent Online Technical Support: Remote video guidance, process optimization, problem response
III. Technical Parameter Table
| Item | Parameter |
| Applicable Raw Materials | PP, PE, PET, PA (Nylon), etc. |
| Extruder Type | Single Screw (Standard/High-Speed Type) |
| Screw Diameter | Φ45~Φ90 mm |
| Die Head Type | T-die (Multi-hole, 10~150 holes) |
| Filament Diameter Range | 0.1~1.2 mm (100~1200 microns) |
| Number of Die Holes | 10~150 holes (depending on capacity) |
| Line Speed | 2~12 m/min |
| Control System | PLC + Temperature Control + Drawing Control |
| Cooling Method | Water Tank Cooling (Stable Forming) |
| Winding Method | Automatic/Semi-automatic Winding, Coiling or Spool |
IV. Formulation Table (Example: PP-based Paint Brush Filament)
| Component | Proportion (%) | Function |
| PP / PE / PET / PA | 85~93% | Main material, determines filament strength and chemical resistance |
| Solvent Resistant Additive | 1~3% | Enhances resistance to paint and solvents |
| Color Masterbatch | 1~3% | Provides color, supports customization |
| Lubricant | 0.2~1% | Improves processability, prevents melt adhesion |
| Antistatic Agent (Optional) | 0.3~1% | Reduces dust accumulation and static electricity on filaments |
V. Equipment List (Typical Configuration)
| No. | Equipment/System | Function |
| 1 | Raw Material Mixing/Drying System | Ensures raw materials are dry and mixed evenly |
| 2 | Single Screw Extruder | Melts and plasticizes plastic raw materials |
| 3 | T-die Head | Multi-hole extrusion of paint brush filaments |
| 4 | Cooling Water Tank | Uniform cooling, stabilizes filament shape |
| 5 | Drawing Device | Adjusts filament strength and dimensions |

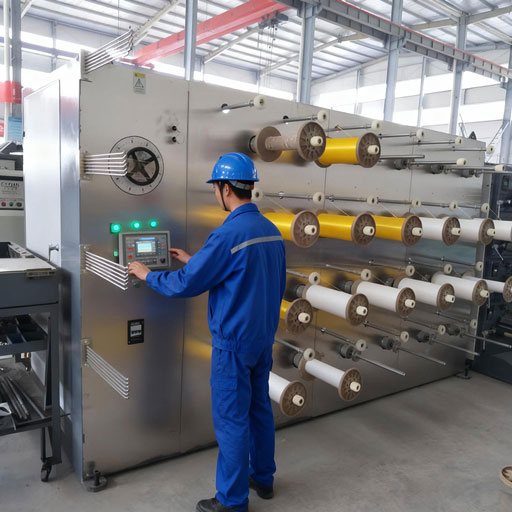

| 6 | Winding Machine | Winds the formed filaments for subsequent processing |
| 7 | Electrical Control System | Precise control of temperature and speed |
VI. Process Flow Chart
[Raw Material Mixing] → [Drying] → [Extruder Melting] → [T-die Extrusion] → [Cooling Water Tank Setting]→[Drawing Device] → [Winding Machine] → [Post-processing/Cutting/Implanting into Brush Head]
VII. Application Fields
Paint brush, coating brush manufacturing
Industrial coating, shipbuilding, woodwork, metal surface treatment brushes
OEM/ODM filament suppliers
Export markets (Europe, America, Southeast Asia, Middle East, etc.)
VIII. About Us
Headquarters: Shandong, China
Founded: 2014 (Focus on plastic extrusion equipment for 10+ years)
Market Distribution: Domestic: 35%, North America: 9%, South Asia/South America/Eastern Europe/Middle East: 7%~5% each
Enterprise Scale: 3 branch factories, 2 major industrial parks, 100+ employees
Service Principle: Quality first, turnkey project, full-process technical support, support OEM customization, permanent online video technical support
