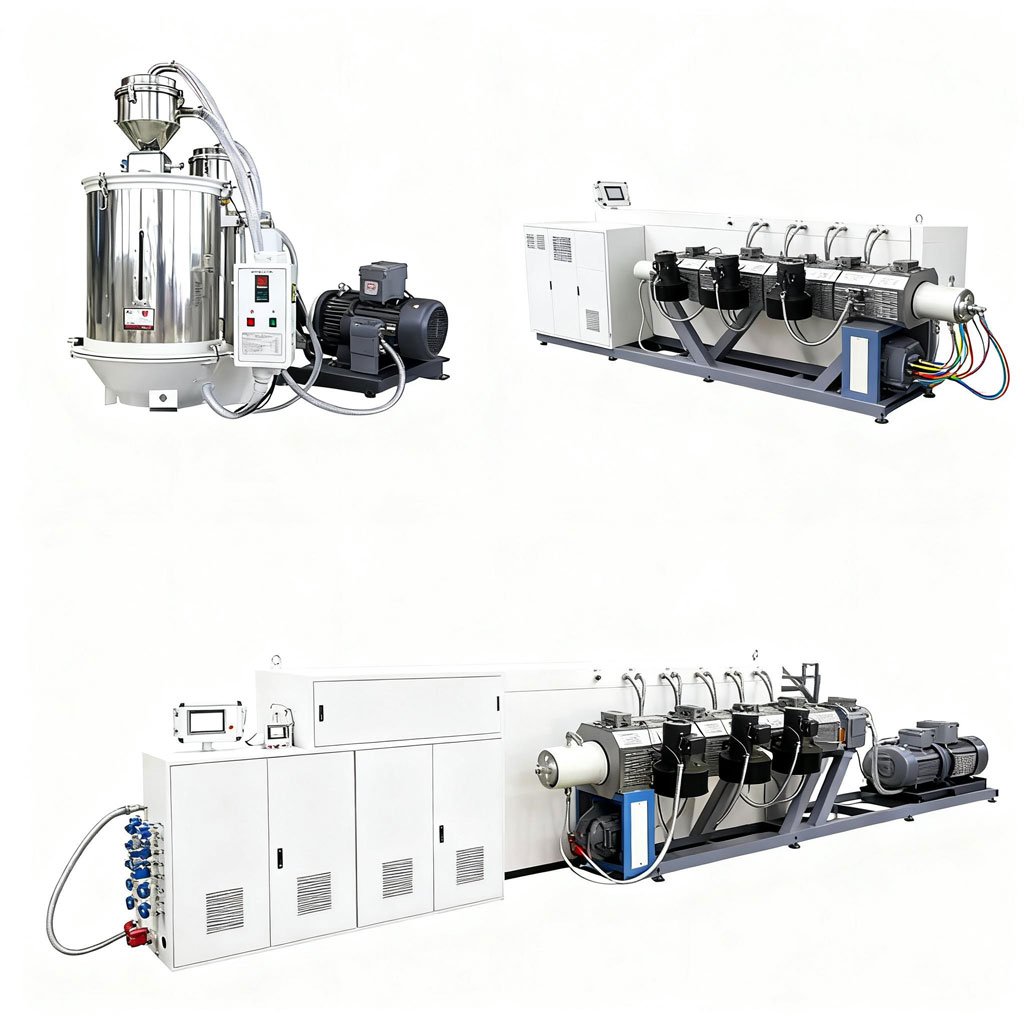

Plastic Broom Filament Extrusion Production Line
I. Product Description
The Plastic Broom Filament Extrusion Production Line is a professional plastic extrusion system specifically designed for producing high-strength, high-toughness, and low-cost plastic broom filaments. Through precision die heads and temperature control, this production line melts and plasticizes plastic raw materials such as PVC, PE, and PP, then extrudes them uniformly through a multi-hole T-die. Subsequently, through processes like cooling, drawing, and winding, it produces broom filaments with uniform diameter, tight structure, durability, and environmental friendliness. These are widely used in household brooms, industrial cleaning tools, and other fields.
II. Equipment Advantages (Core Selling Points)
We provide a true "turnkey" overall solution, covering equipment, formulations, processes, and after-sales support, enabling you to start production without worries:
Complete Equipment: Includes raw material handling, extruder, die head, cooling system, drawing, winding, etc.
Specialized Formulations: Provide optimized PVC/PE/PP formulations to ensure filament strength, toughness, and weather resistance.
Mature Process: 10+ years of broom filament production experience, precise control of filament diameter and physical properties.
Turnkey Service: Equipment + Formulations + Process Technology + After-sales Support, one-stop implementation.
Support for OEM Customization: Customize brand, packaging, and specifications according to customer needs.
Permanent Online Technical Support: Remote video guidance, process optimization, problem response.
III. Technical Parameter Table
Item | Parameter |
Applicable Raw Materials | PVC, PE, PP, PET (can contain recycled materials) |
Extruder Type | Single Screw (Standard/High-Speed Type) |
Screw Diameter | Φ50~Φ90 mm |
Die Head Type | T-die (Multi-hole, 10~200 holes) |
Filament Diameter Range | 0.2~2.0 mm (200~2000 microns) |
Number of Die Holes | 10~200 holes (depending on capacity) |
Line Speed | 2~15 m/min |
Control System | PLC + Temperature Control + Drawing Control |
Cooling Method | Water Tank Cooling (Stable Forming) |
Winding Method | Automatic/Semi-automatic Winding, Coiling or Spooling |
IV. Formulation Table (Example: PVC-based Broom Filament)
Component | Proportion (%) | Function |
PVC Resin | 85~92% | Main material, determines filament rigidity and strength |
Plasticizer | 3~8% | Enhances flexibility, prevents brittleness |
Stabilizer | 1~3% | Resists thermal-oxidative aging, extends service life |
Lubricant | 0.2~1% | Improves processability, prevents melt adhesion |
Pigment/Color Masterbatch (Optional) | 0.5~2% | Provides color, supports customization |
V. Equipment List (Typical Configuration)
No. | Equipment/System | Function |

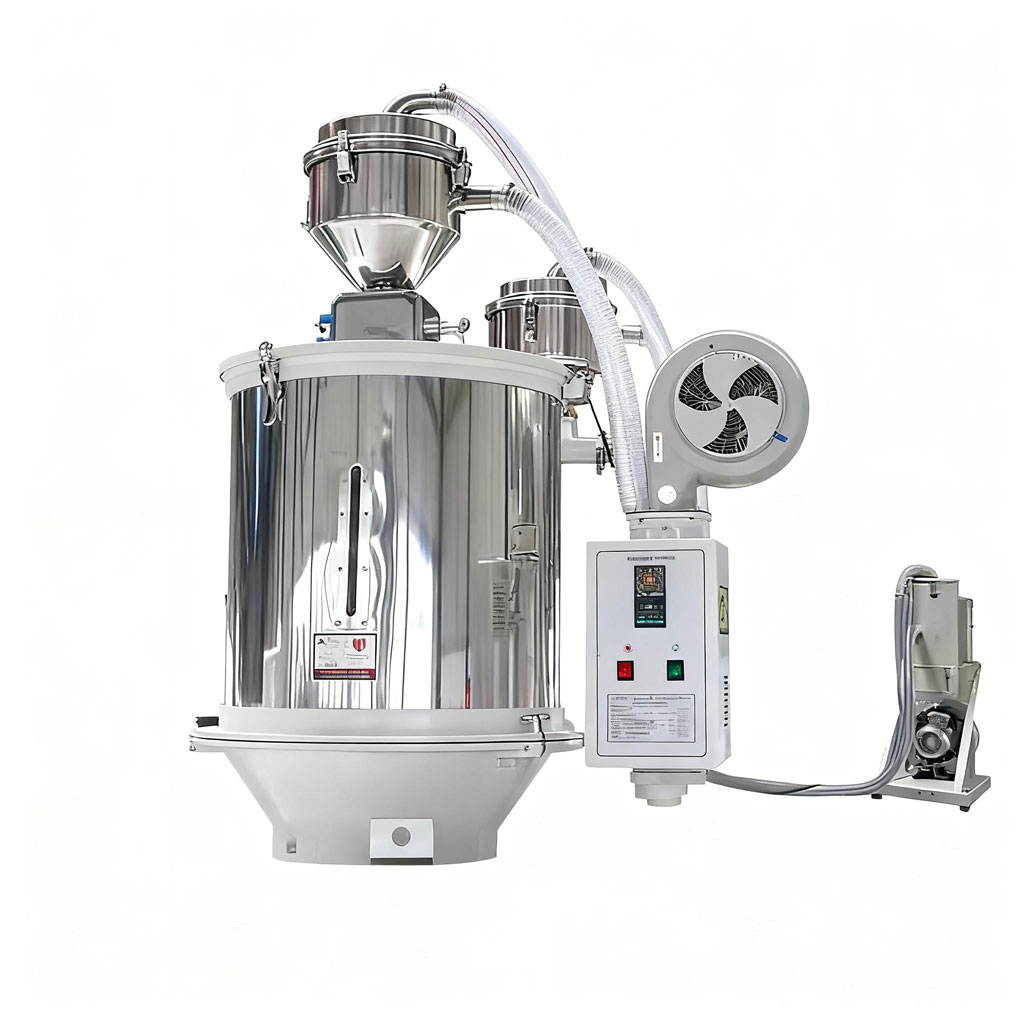

1 | Raw Material Mixing/Drying System | Ensures raw materials are dry and mixed uniformly |
2 | Single Screw Extruder | Melts and plasticizes plastic raw materials |
3 | T-die | Multi-hole extrusion of broom filaments |
4 | Cooling Water Tank | Uniform cooling, stabilizes filament shape |
5 | Drawing Unit | Adjusts filament strength and dimensions |
6 | Winding Machine | Winds the formed filaments for subsequent processing |
7 | Electrical Control System | Precise control of temperature and speed |
VI. Process Flow Chart
[Raw Material Mixing] → [Drying] → [Extruder Melting] → [T-die Extrusion] → [Cooling Water Tank Setting]→[Drawing Unit] → [Winding Machine] → [Post-processing/Cutting/Packaging]
VII. Application Fields
Household Broom, Industrial Cleaning Brush Manufacturing
Environmental Recycling Plastic Reuse (e.g., PET bottle flakes)
OEM/ODM Broom Filament Suppliers
Export Markets (Southeast Asia, Middle East, Africa, etc.)
VIII. About Us
Headquarters: Shandong, China
Founded: 2014 (Over 10 years specializing in plastic extrusion equipment)
Market Distribution: Domestic: 35% North America: 9% South Asia/South America/Eastern Europe/Middle East: 7%~5% each
Enterprise Scale: 3 branch factories, 2 major industrial parks, 100+ employees
Service Tenet: Quality First, Turnkey Projects, Full-process Technical Support, Support for OEM Customization, Permanent Online Video Technical Support.
