Open Mill

Energy Saving and Emission Reduction, Cost Reduction and Efficiency Improvement

APEX's electrical control cabinets and motor systems achieve 5%-60% power savings through frequency conversion, intelligent control, and efficient hardware design. Core mechanisms include:

1. Frequency Conversion Speed Regulation: Dynamically matches load demand (10%-35% energy saving).

2. Intelligent Control System: Multi-dimensional energy efficiency optimization (5%-15% energy saving).

3. Efficient Hardware Design: Reduces basic losses (3%-10% energy saving).

Product Details

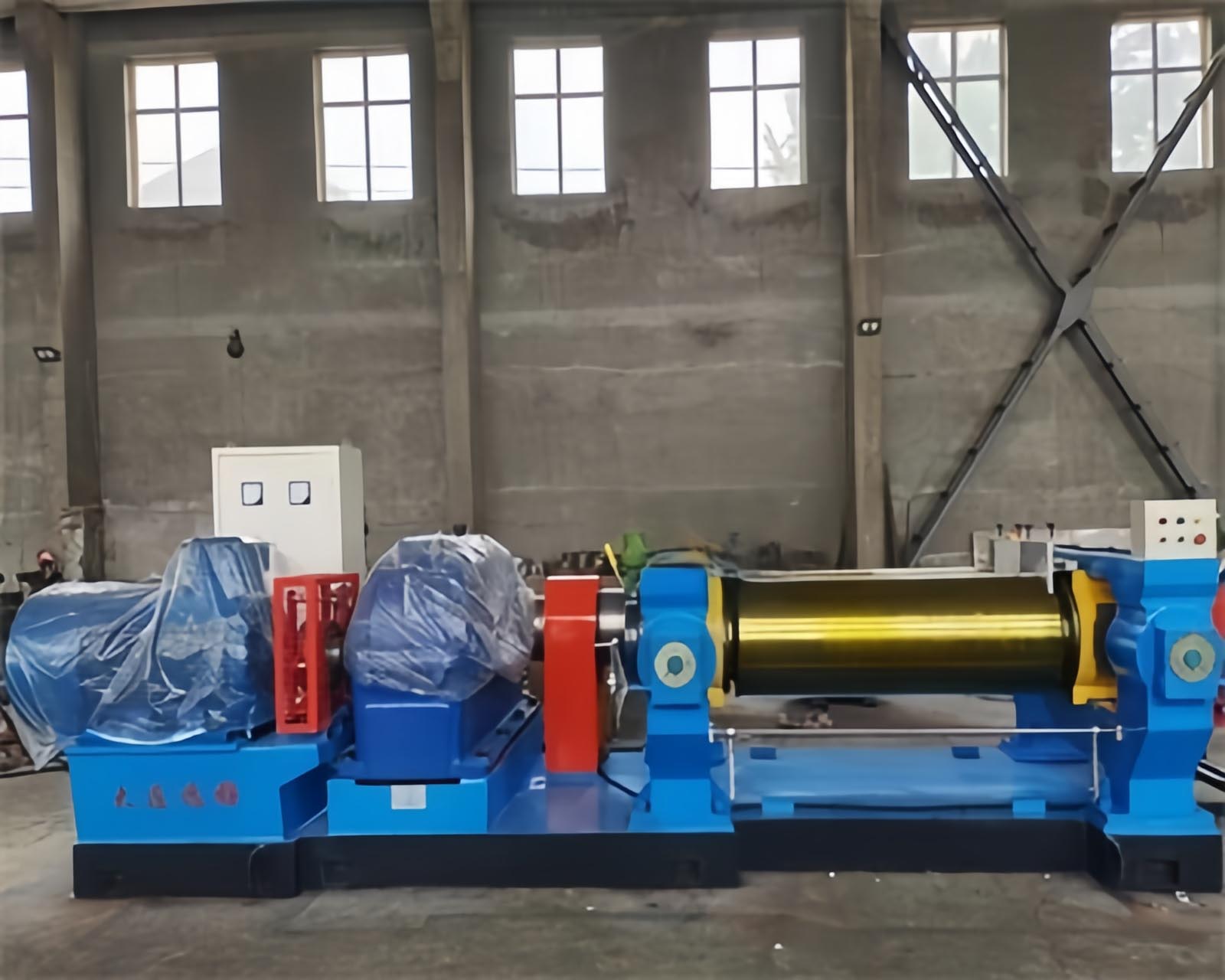

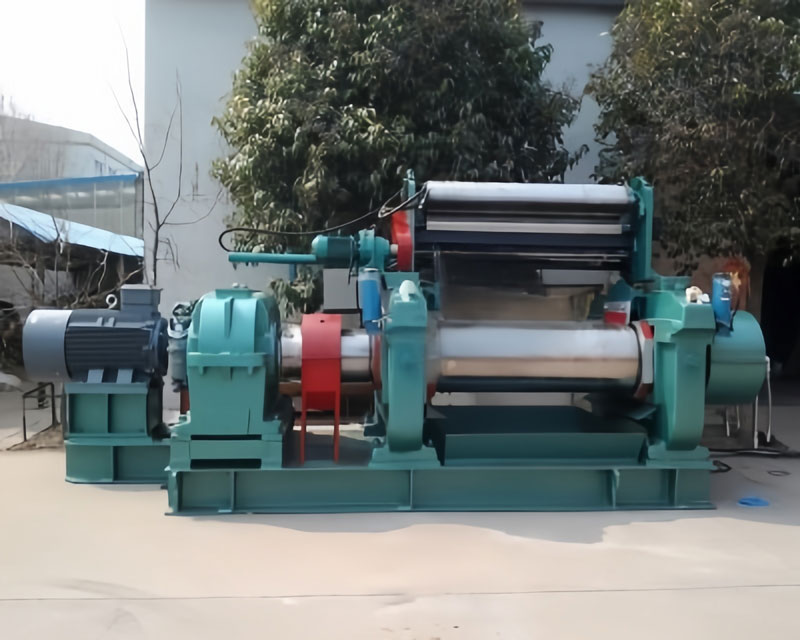

Open Mill

I. Product Description

The Open Mill (Open-type Mixing Mill) is used for plasticizing and mixing rubber, plastic, and blended materials. It features counter-rotating rolls that provide shear and pressure for uniform dispersion. Suitable for natural rubber, synthetic rubber, reclaimed rubber, plastics, and low-viscosity materials. Widely used in tire, cable, seal, hose manufacturing, etc.

II. Key Advantages

Core Advantage	Technical Description
Efficient Mixing	Dual hydraulic meshing rotors, 30% higher shear efficiency
Intelligent Control	PLC + touch screen, real-time temp/pressure monitoring
Eco & Energy Saving	Enclosed structure reduces dust, 25% lower energy consumption
Long Life Design	Hard chrome plated rolls, 5x wear resistance
Safety Protection	8 emergency stops, auto roll gap reversal
Turnkey Service	Installation, training, lifetime technical support

III. Technical Parameters

Parameter	X(S)K-250	X(S)K-450	X(S)K-550
Effective Volume (L)	75	150	200
Roll Diameter (mm)	250	450	550
Main Motor Power (kW)	18.5	55	95
Roll Speed Ratio	01:01.3	01:01.3	01:01.2
Temp Range (°C)	Room Temp-300	Room Temp-300	Room Temp-300
Dimensions (mm)	2722×1115×1345	4920×1780×1760	5640×2500×1740

IV. Formula Example (Natural Rubber)

Component	Ratio	Function
Natural Rubber	100 phr	Base Material
Zinc Oxide	5 phr	Activator
Stearic Acid	1.2 phr	Lubricant
Carbon Black N220	30 phr	Reinforcing Agent
Sulfur	2.5 phr	Vulcanizing Agent

V. Equipment List

• Mixing Chamber (with jacket cooling)

• Dual Hydraulic Meshing Rotor Assembly

• Variable Frequency Drive Motor (380V/50Hz)

• PLC Control System (with temp/pressure sensors)

• Hydraulic Tilting Mechanism (with safety lock)

• Exhaust Gas Treatment Unit

VI. Process: Feeding → Pre-mixing → Main Mixing → Discharge → Sheeting → Cooling → QC

VII. Applications

Rubber Products: Tires, Seals, Conveyor Belts

Plastic Processing: PVC Cable Compounds, Masterbatch

Pharma/Chemical: Tablet Coating Materials, Sustained-release Formulations
