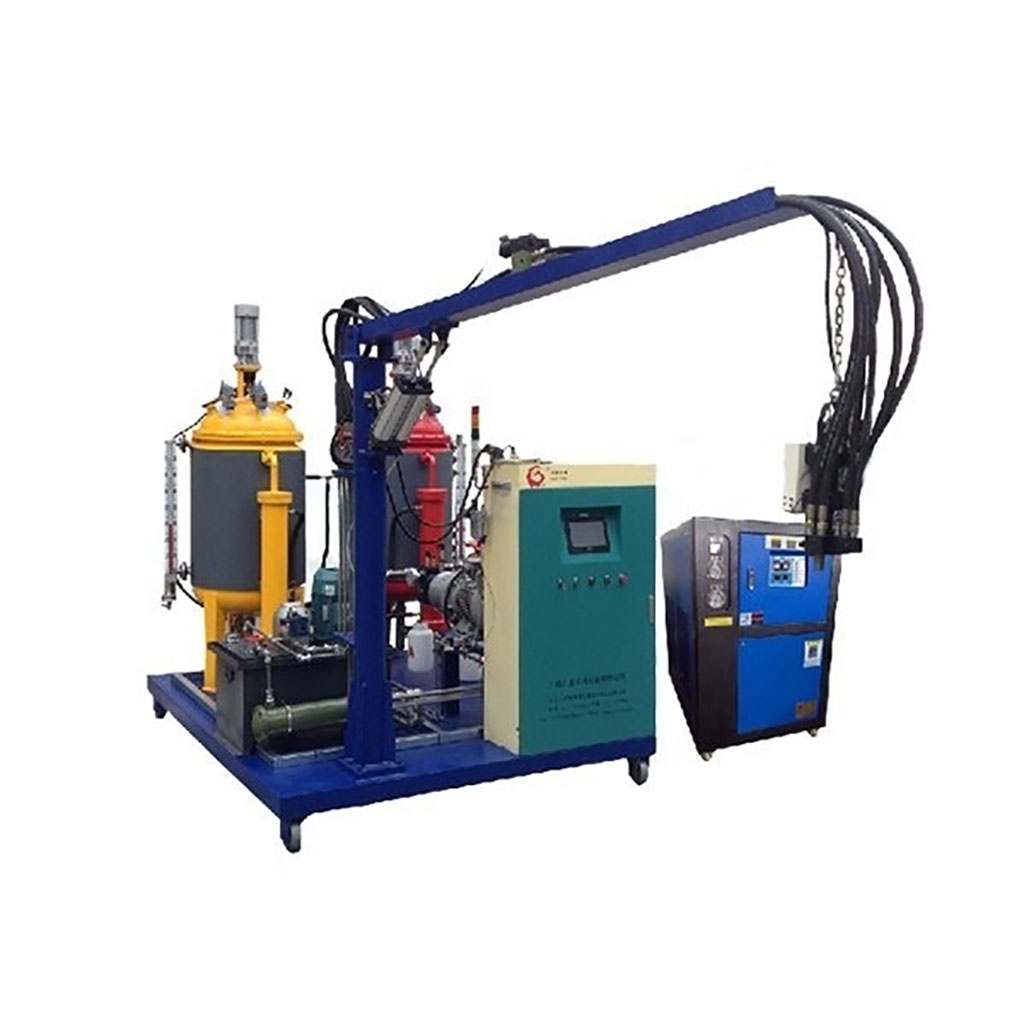

Polyurethane Foaming Machine
I. Product Description
The polyurethane foaming machine is specialized equipment for producing polyurethane foam (PU Foam). It works by precisely mixing polyol and isocyanate, which rapidly undergo a chemical reaction to generate polyurethane foam materials with properties like thermal insulation, sound insulation, cushioning, and light weight. This equipment is widely used in building insulation, furniture and seating, automotive interiors, cold chain insulation, home appliance packaging, footwear materials, and other fields, capable of producing various types of polyurethane foam such as rigid foam, flexible foam, self-skinning foam, and high-resilience foam.
II. Equipment Advantages (Core Selling Points)
Efficient Mixing System: Utilizes high-pressure impingement mixing or high-speed stirring to ensure uniform mixing of A/B components and excellent foaming effect.
Precise Metering System: High-precision metering pumps guarantee accurate ratio of polyol to isocyanate (typically 1:1 ~ 1:5).
Multi-functionality: Supports various foaming processes including rigid foam, flexible foam, self-skinning foam, high resilience, slow rebound, etc.
Automated Control: PLC control automatically adjusts temperature, pressure, and flow rate; easy operation and high stability.
Modular Design: Configurable with high-pressure machines, low-pressure machines, pouring machines, foaming lines, etc., according to需求.
Turnkey Service Provided:
• Polyurethane foaming machine host and auxiliary equipment
• A/B component specific formulations (polyol + isocyanate + catalysts, etc.)
• Process technology (ratio, temperature, foaming time, etc.)
• After-sales support and on-site training
• Support for OEM / custom branding
• Permanent online technical guidance
III. Technical Parameter Table
| Item | Parameter / Description | Typical Value / Range |
| Foam Type | - | Rigid Foam / Flexible Foam / Self-skinning / High Resilience, etc. |
| Machine Type | - | High-Pressure Foaming Machine / Low-Pressure Foaming Machine / Pouring Machine |
| A/B Component Ratio | - | Typically 1:1 ~ 1:5 (Adjustable) |
| Metering Accuracy | % | ±1% ~ ±0.5% |
| Mixing Pressure | bar | 80 ~ 200 (High Pressure); 10 ~ 30 (Low Pressure) |
| Tank Capacity | L | 5 ~ 120L (A/B Component Tanks) |
| Output Flow Rate | kg/min | 1 ~ 30 (Depending on Model) |
| Power Supply | - | 380V / 50Hz (Three-phase) |
| Control Method | - | PLC / Touch Screen / Automatic Temperature Control |
| Operating Temperature | °C | Raw Material Temperature 20 ~ 25°C Optimal |
IV. Formulation Table (Common Polyurethane Foaming Material Systems)
| Material Type | Common Materials | Function & Role |
| Polyol (A Component) | Polyether Polyol / Polyester Polyol | Provides foam flexibility, structural basis |
| Isocyanate (B Component) | TDI / MDI (Toluene Diisocyanate / Diphenylmethane Diisocyanate) | Reacts with polyol to form polyurethane network |
| Catalyst | Amine-based / Metal Catalysts | Controls reaction rate, adjusts foaming speed |
| Blowing Agent | Water / Physical Blowing Agents (e.g., Cyclopentane) | Generates bubbles, forms foam structure |
| Additives | Silicone Oil (Surfactant), Flame Retardants, Color Paste, etc. | Improves cell structure, flame retardancy, coloring |
V. Equipment List
| No. | Equipment Name | Function |
| 1 | Polyurethane Foaming Machine Host | A/B Component Mixing and Foaming |
| 2 | High/Low Pressure Metering Pump | Precisely delivers A/B components |
| 3 | Mixing Head | High-speed mixing of polyol and isocyanate |
| 4 | Tanks (A/B Components) | Stores raw materials |
| 5 | Temperature Control System | Controls raw material temperature |
| 6 | PLC Control System | Automated operation and parameter control |
| 7 | Pouring Gun/Mold System (Optional) | For directional pouring or molding |
VI. Process Flow Chart (Text Version)
Raw Material Preparation: Polyol (A component) and Isocyanate (B component) heated to 20~25°C respectively.
Metering & Delivery: Precisely delivered to mixing head via high-precision metering pumps according to set ratio.
Mixing & Foaming: High-speed impingement or stirring mixing within mixing head, instant chemical reaction occurs.
Foam Generation: Reaction generates polyurethane foam, releasing gas to form cell structure.
Molding/Curing: Injected into mold or free foaming, cooled and shaped.
VII. Application Fields
Building Insulation: Wall, roof, pipe insulation materials.
Furniture: Sofa, mattress, seat foam.
Automotive: Seats, dashboards, interior parts, sound insulation materials.
Cold Chain: Refrigerated containers, cold storage panels, insulated pipes.
Home Appliances: Refrigerator, water heater insulation layers.
Footwear Materials: Shoe sole, insole foam.
VIII. About Us
Headquarters: Shandong, China
Established: 2014
Market Distribution: Domestic 35%, North America 9%, South Asia/South America/Eastern Europe/Middle East 7%~5% each.
Company Scale: 3 branch factories, 2 major industrial parks, 200+ employees, 10+ years professional experience.
Service Philosophy: Quality first, turnkey projects, full-process technical support. Supports OEM customization, permanent online video technical support.
