Plastic Brush Filament Extrusion Line (Universal)
I. Product Description
The Plastic Brush Filament Extrusion Line (Universal) is a complete plastic extrusion system specifically designed for producing various general-purpose plastic brush filaments. This line melts and plasticizes plastic raw materials like PP, PE, PET, PA through precise molds and temperature control, then uniformly extrudes them through a multi-hole T-die, followed by cooling, drawing, winding, and other processes to produce plastic monofilaments with uniform diameter, moderate strength, and smooth surface, widely used in the manufacturing of various brush products such as industrial brushes, cleaning brushes, and daily-use brushes.
II. Equipment Advantages (Core Selling Points)
We provide a true 'turnkey' overall solution, covering equipment, formulation, process, and after-sales support, ensuring worry-free production startup:
Complete Equipment: Includes raw material handling, extruder, die, cooling system, drawing, winding, etc.
Specialized Formulations: Provide optimized formulations for PP/PE/PET/PA, etc., ensuring filament strength, toughness, and surface smoothness.
Mature Process: 10+ years of brush filament production experience, precise control of filament diameter and physical properties.
Turnkey Service: Equipment + Formulation + Process Technology + After-sales Support, one-stop implementation.
Supports OEM Customization: Customize brand, packaging, and specifications according to customer needs.
Permanent Online Technical Support: Remote video guidance, process optimization, problem response.
III. Technical Parameter Table
| Item | Parameter |
| Applicable Raw Materials | PP, PE, PET, PA (Nylon), PBT, etc. |
| Extruder Type | Single Screw (Standard/High-Speed Type) |
| Screw Diameter | Φ45~Φ90 mm |
| Die Type | T-Die (Multi-hole, 10~200 holes) |
| Filament Diameter Range | 0.1~1.5 mm (100~1500 microns) |
| Number of Die Holes | 10~200 holes (depending on capacity) |
| Line Speed | 2~15 m/min |
| Control System | PLC + Temperature Control + Drawing Control |
| Cooling Method | Water Bath Cooling (Stable Forming) |
| Winding Method | Automatic/Semi-automatic Winding, Coiling or Spool |
IV. Formulation Table (Example: PP-based Brush Filament)
| Component | Proportion (%) | Function |
| PP / PE / PET / PA | 85~93% | Main material, determines filament strength and processability |
| Softening Modifier | 2~6% | Improves filament softness and hand feel |
| Color Masterbatch | 1~3% | Provides color, supports customization |
| Lubricant | 0.2~1% | Improves melt fluidity, prevents sticking |
| Antistatic Agent (Optional) | 0.3~1% | Reduces dust accumulation and static electricity on filaments |

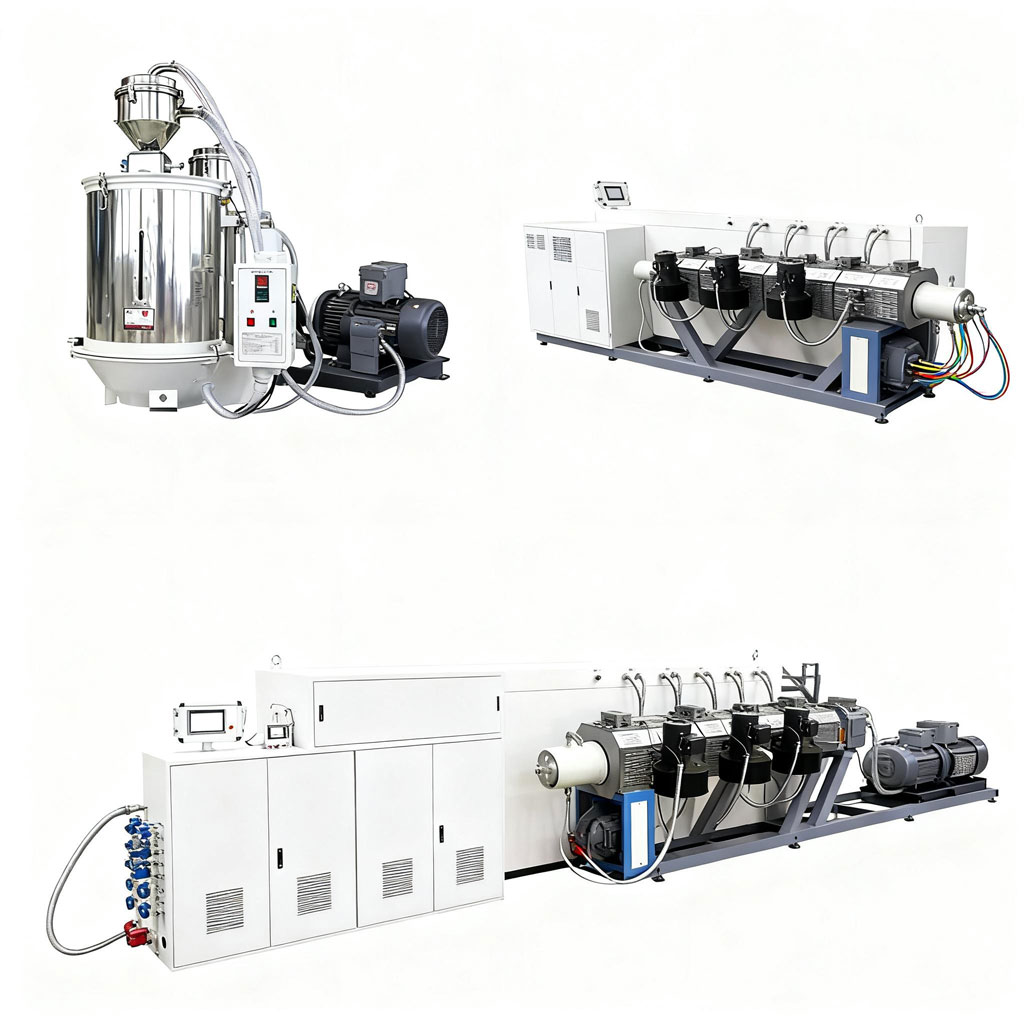

V. Equipment List (Typical Configuration)
| No. | Equipment/System | Function |

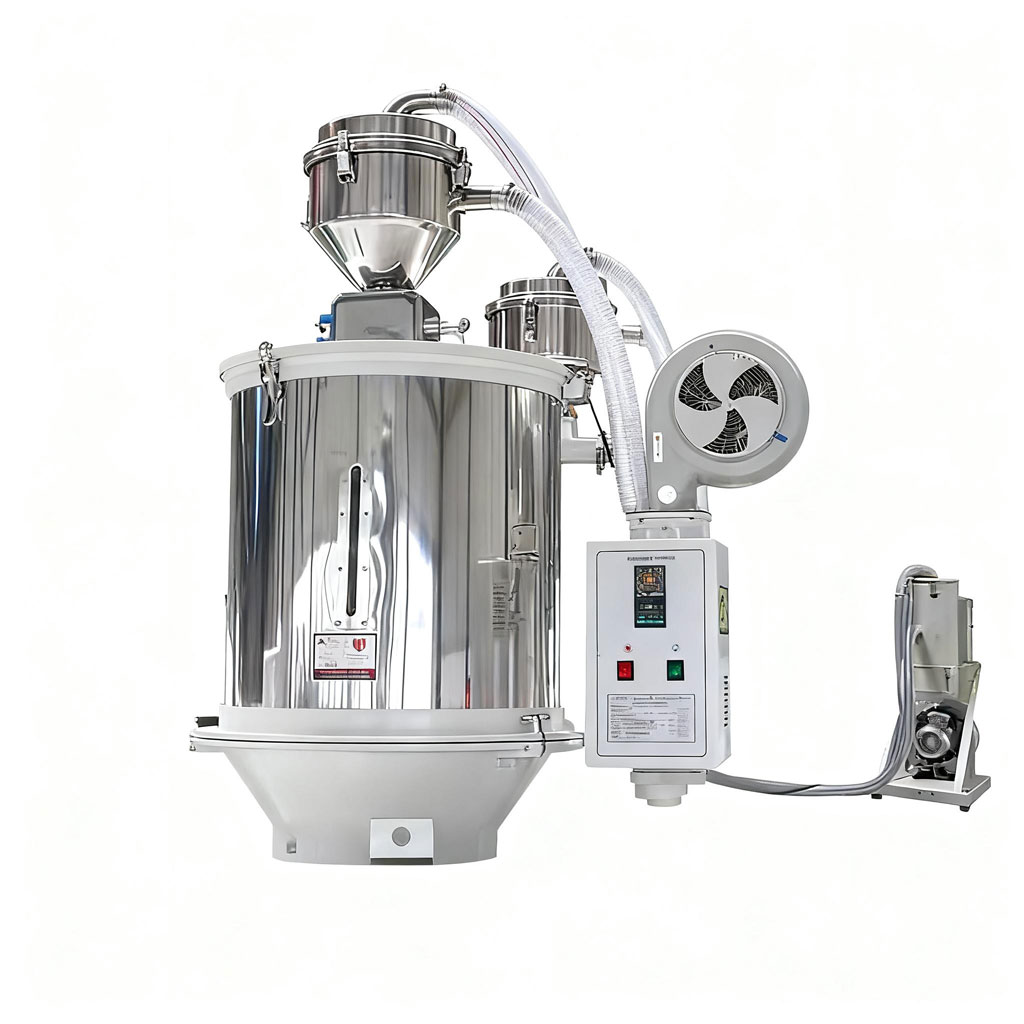

| 1 | Raw Material Mixing/Drying System | Ensures raw materials are dry and uniformly mixed |

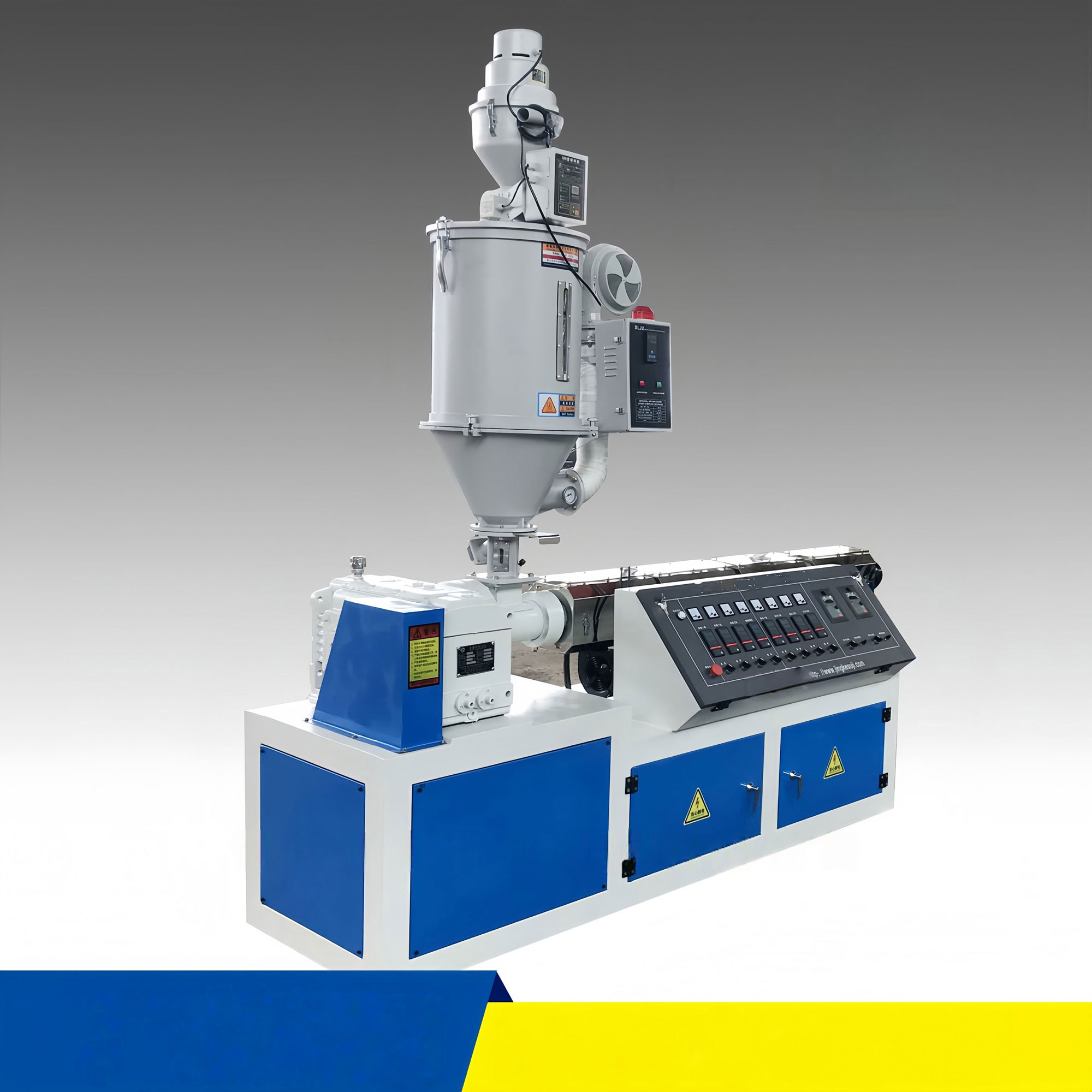

| 2 | Single Screw Extruder | Melts and plasticizes plastic raw materials |
| 3 | T-Die | Extrudes multiple brush filaments |
| 4 | Cooling Water Bath | Uniformly cools and stabilizes filament shape |
| 5 | Drawing Device | Adjusts filament strength and dimensions |
| 6 | Winding Machine | Winds the formed filaments for subsequent processing |
| 7 | Electrical Control System | Precise control of temperature and speed |
VI. Process Flow Chart

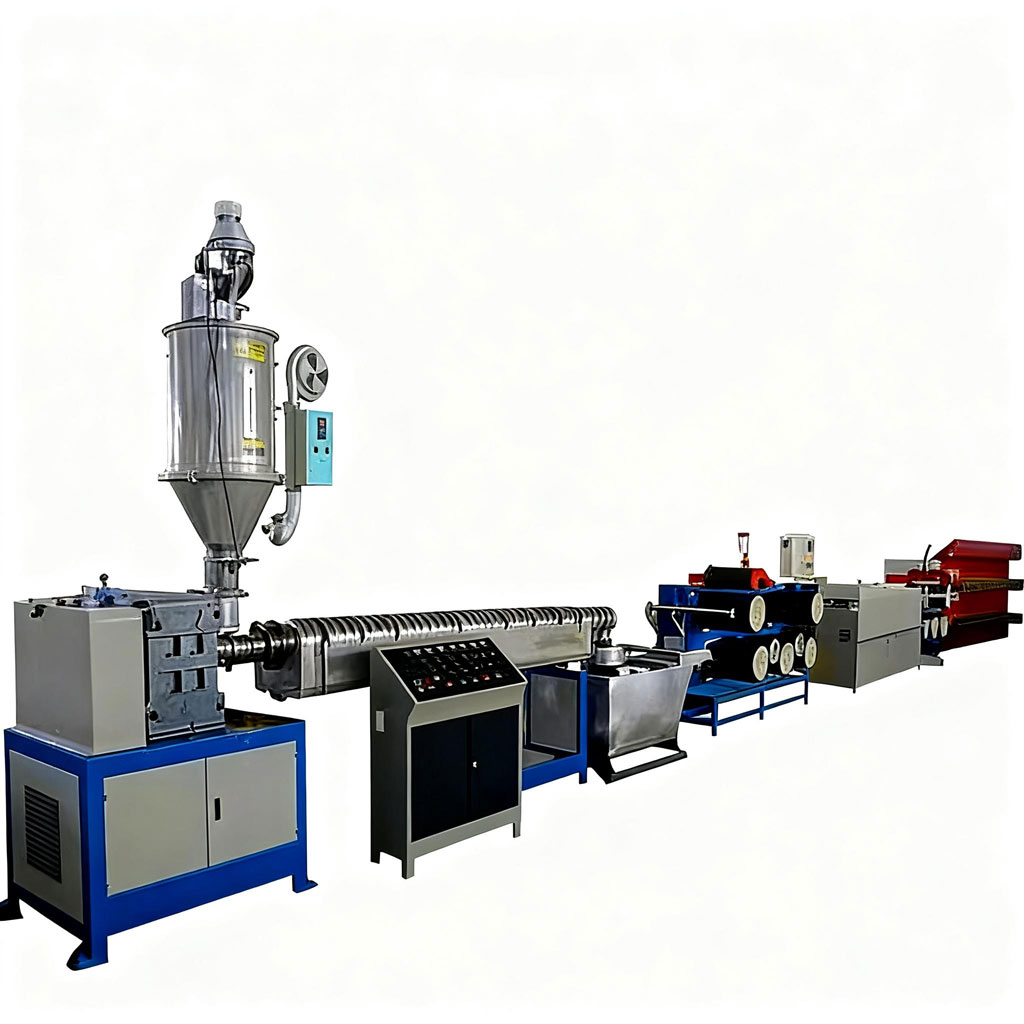

[Raw Material Mixing] → [Drying] → [Extruder Melting] → [T-Die Extrusion] → [Cooling Water Bath Setting] → [Drawing Device] → [Winding Machine] → [Post-processing/Cutting/Implanting into Brush Head]
VII. Application Fields
Industrial Brushes (e.g., brush rollers, conveyor belt cleaning brushes)
Cleaning Brushes (floor brushes, toilet brushes, door/window brushes)
Daily-use Brushes (shoe brushes, clothes brushes, basic filaments for makeup brushes)
Export Markets (Europe & America, Southeast Asia, Middle East, etc.)
VIII. About Us
Headquarters: Shandong, China
Established: 2014 (Focus on plastic extrusion equipment for 10+ years)
Market Distribution: Domestic: 35% North America: 9% South Asia/South America/Eastern Europe/Middle East: 7%~5% each
Enterprise Scale: 3 branch factories, 2 major industrial parks, 100+ employees
Service Tenet: Quality first, turnkey project, full-process technical support, supports OEM customization, permanent online video technical support.
